Doctor Fresh Water Chiller 1TR- - If You Need More Info For Your Product just dial our contact number.
Technical Specifications – 1 TR Model
Cooling Capacity
-
1 TR (3024 Kcal/hr)
-
Approx. 3.5 kW cooling capacity
Temperature Range
-
Outlet Water Temperature: 5°C to 20°C (Adjustable)
-
Ambient Temperature: Up to 45°C
Compressor
-
Type: Hermetically Sealed Scroll / Reciprocating
-
Make: Emerson / Copeland / Danfoss (or equivalent)
Refrigerant
-
R134a / R410A (Eco-friendly)
Condenser
-
Air Cooled Type
-
Copper condenser coil with axial fan
Evaporator
-
Brazed Plate Type / Shell & Tube
-
SS 304 construction
Water Flow Rate
-
Approx. 0.5 – 0.7 m³/hr
Water Pump
-
Inbuilt Centrifugal Pump
Electrical Specification
-
Power Supply: 230V Single Phase / 415V Three Phase
-
Frequency: 50 Hz
Body Structure
-
Powder-coated MS cabinet
-
Compact skid-mounted design

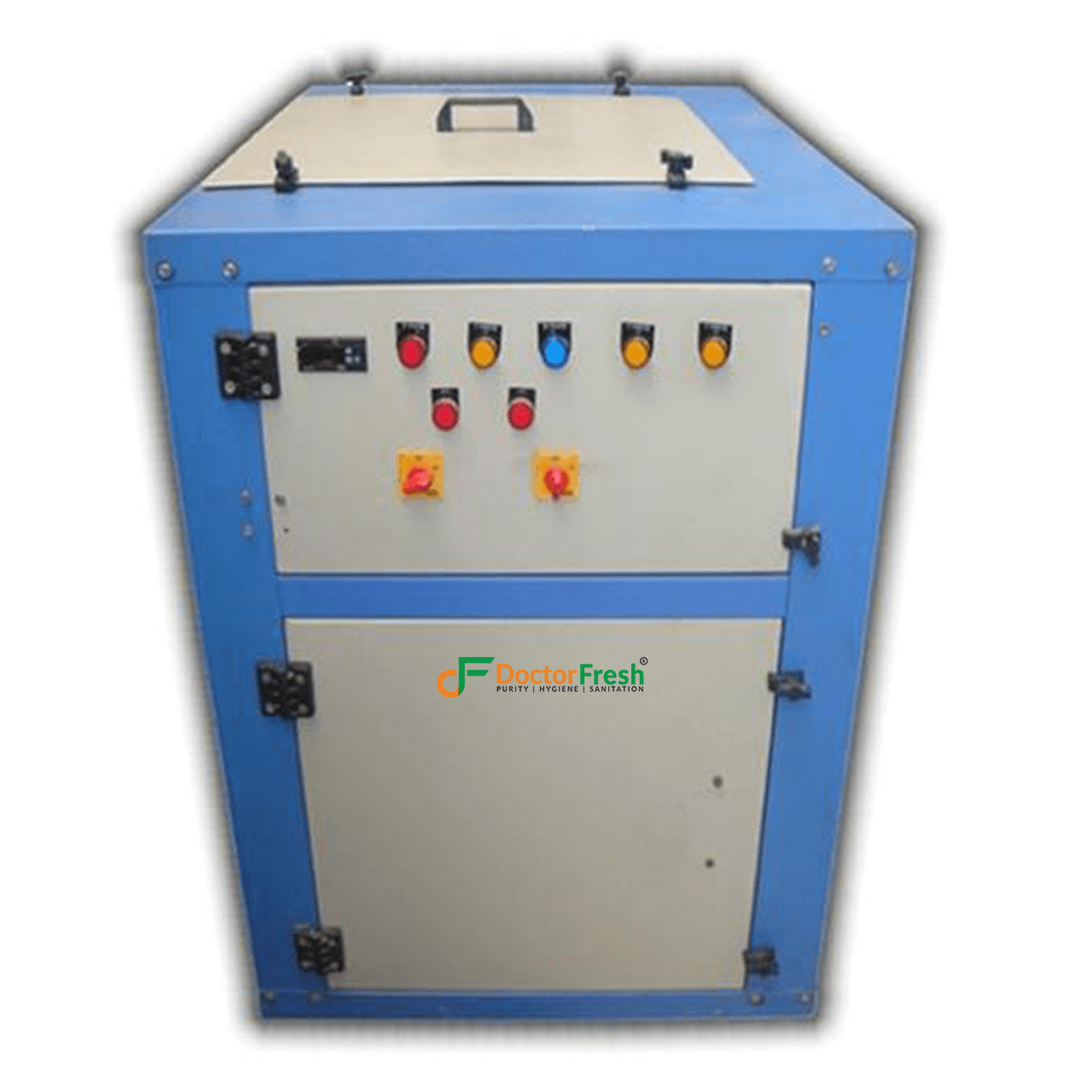

The 1 Ton (1 TR) Water Chiller is a compact industrial cooling unit designed to remove heat from water and maintain a constant low temperature for small-scale industrial and commercial applications.
It works on a vapor compression refrigeration cycle and is suitable for RO plants, laboratories, laser machines, and small process cooling requirements.
