Doctor Fresh Water Chiller 5 Ton - If You Need More Info For Your Product just dial our contact number.
Technical Specifications – 5 TR Model
Cooling Capacity
-
5 TR (Approx. 15,120 Kcal/hr)
-
Approx. 17.5 kW cooling capacity
Temperature Range
-
Outlet Water Temperature: 5°C to 20°C (Adjustable)
-
Ambient Temperature: Up to 45°C
Compressor
-
Type: Hermetically Sealed Scroll / Reciprocating
-
Make: Emerson / Copeland / Danfoss (or equivalent)
-
Quantity: 1 or 2 (depending on design)
Refrigerant
-
R134a / R410A / R407C (Eco-friendly)
???? Condenser
-
Air Cooled Type
-
Heavy-duty copper condenser coil with axial fans
Evaporator
-
Shell & Tube Type / Brazed Plate Type
-
SS 304 / Copper construction
Water Flow Rate
-
Approx. 2.5 – 3.0 m³/hr
Water Pump
-
Heavy-duty centrifugal pump
-
Adequate head pressure for industrial use
Electrical Specification
-
Power Supply: 415V / 3 Phase / 50 Hz
-
Connected Load: Approx. 6 – 8 kW (depends on design)
Body Structure
-
Powder-coated heavy-duty MS cabinet
-
Industrial skid-mounted design

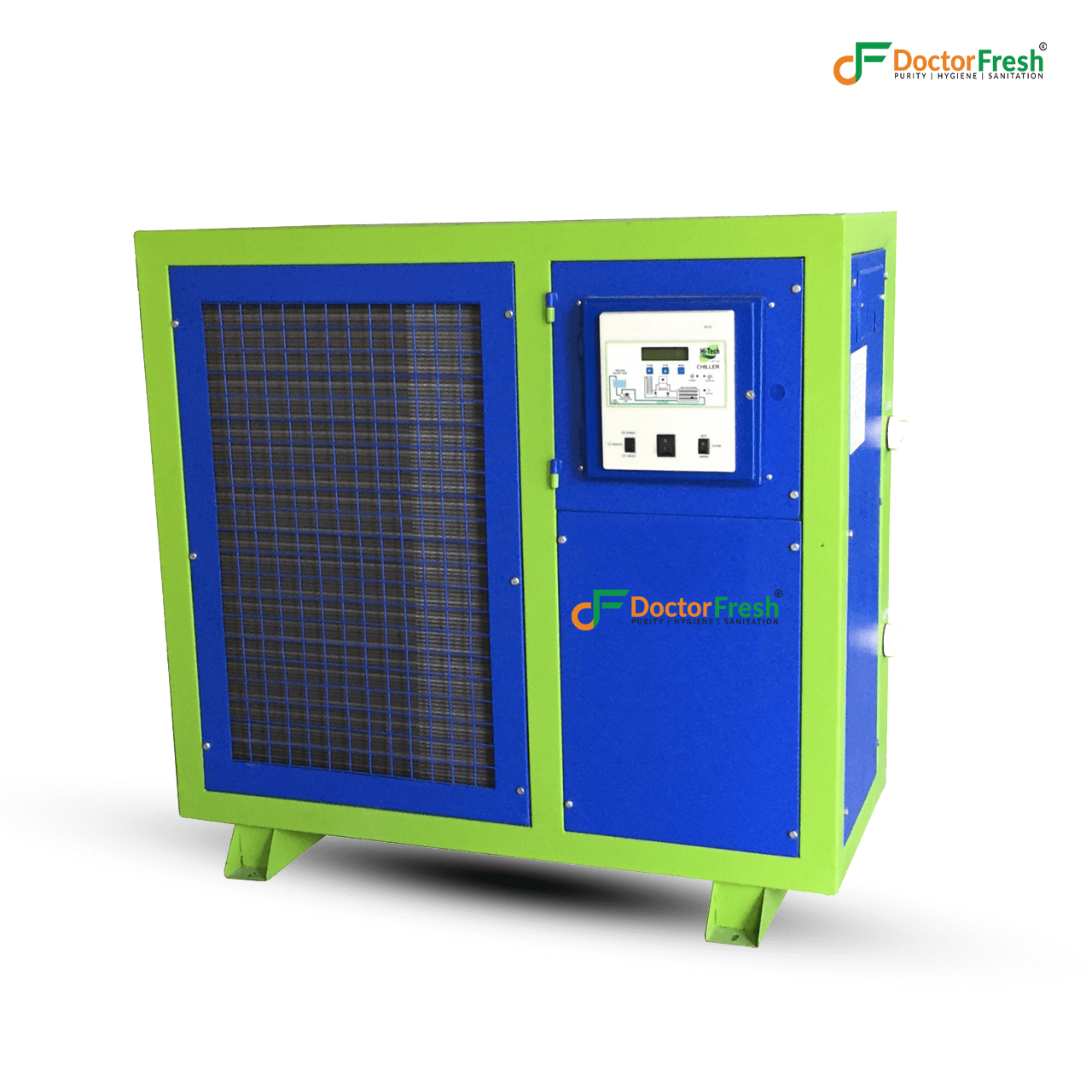

The 5 Ton (5 TR) Water Chiller is a medium-capacity industrial cooling system designed to remove heat from water and maintain stable temperature control for continuous process applications.
It operates on a vapor compression refrigeration system and is suitable for RO plants, pharmaceuticals, food processing, plastic molding, chemical industries, and laser machines.
